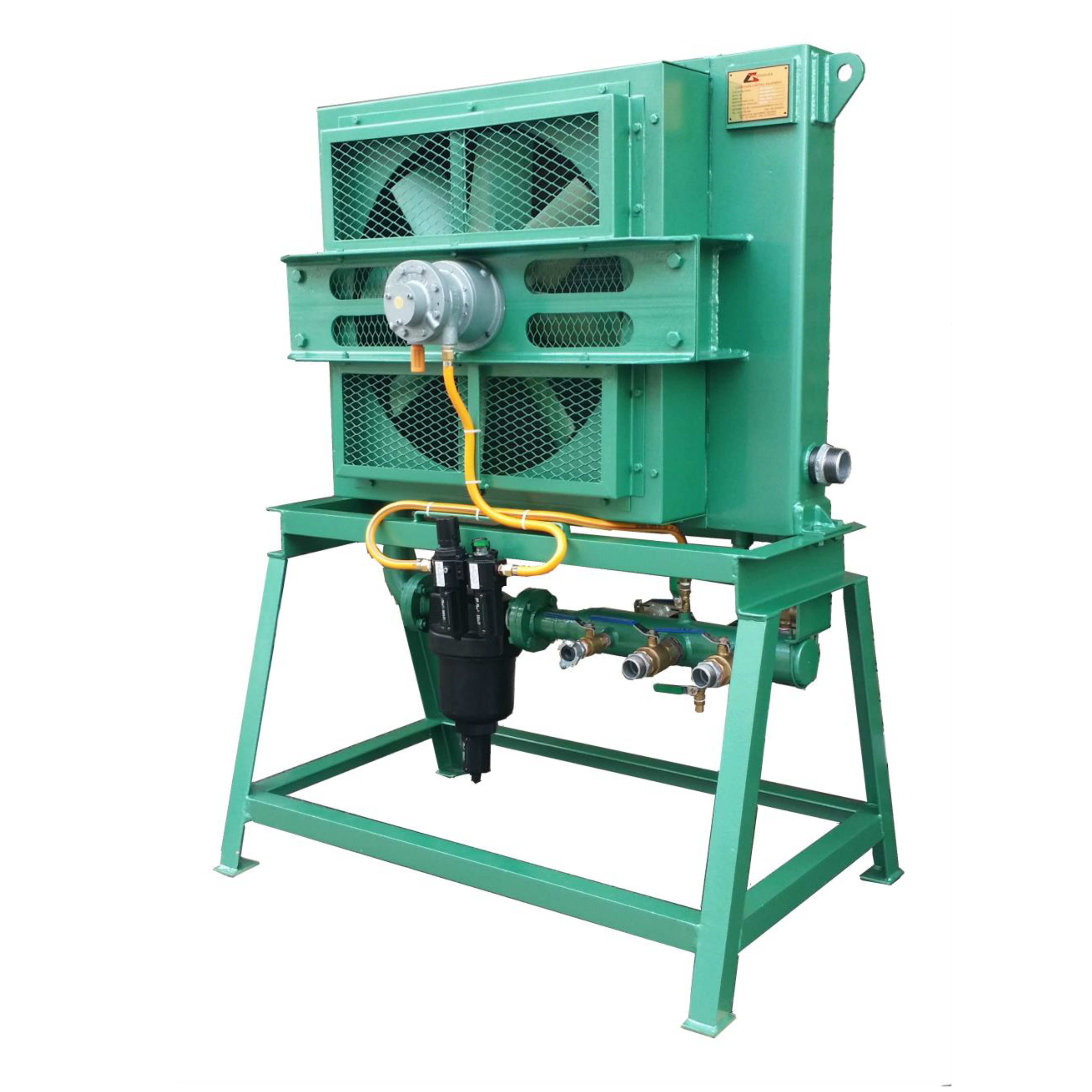

AIR-COOLED AFTERCOOLER 850CFM

Product Code: AAC 850
Quick Overview:
  • Air capacity = 1445m³/hour (850cfm)
  • Air inlet temperature = 80 deg C
  • Air Outlet temperature = 10 deg C above ambient
  • Safe working pressure = 150 psi (10.34 bar)
  • Width (mm) = 1163
  • Depth (mm) = 800
  • Height (mm) = 1531
  • Weight (kg) = 220
Air Cooler 850cfm

(a) Air-driven motor = 5 Hp
(b) Inlet manifold = 1 port x 2"
(c) Outlet manifold = 2 ports x 1-1/2" c/w 1-1/4" ballvalves
(d) Standard Accessories = Pressure gauge, safety relief valve, 2" moisture separator with drain valve, air filter, regulator & lubricator assy
e) Cooler material = Copper alloy tubes / alumimun fins
